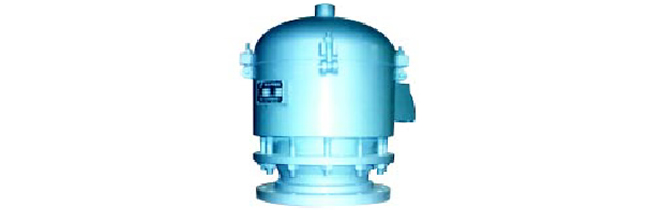

Breather valve, Flame arresting breather valve
Description of products
According to national standard《Fire-prevention code of petrochemical enterprise design》( GB50160-92 ) that the vat for containing Cat.A and B liquids must have flame arrestor and breathing valve. It is very clear that breather valve and flame arrestor is an indispensable device for container. It can keep the storage pressure balanced to prevent the container from being damaged during over-pressure or vacuum condition and reduce the loss and volatilization of medium in the container.
Breather valves manufactured by our company feature compact structure, large flow rate, high-quality sealing performance and less leakage. Our company has developed an advanced world-level breather valve with arrester on the inlet of the breather valve, which can prevent any fire source into the valve body and features small compact, lightweight and convenient repair, cleaning and replacement.
Main technical specifications
◆Suitable to special liquid and gas of petroleum, chemical, medicinal energy engineering;
◆ Operating pressure:
A： -295Pa (-30mmH2O) +355Pa (+36mmH2O)
B： -295Pa (-30mmH2O) +980Pa (+100mmH2O)
C： -295Pa (-30mmH2O) +1750Pa (+180mmH2O)
D： -295Pa (-30mmH2O) +98000Pa (+10000mmH2O)
◆Explosion class; BS 5501：IIA、IIB、IIC
◆Shell material: Carbon steel Al. alloy,
◆Material of valve disc and seat: Al.alloy, stainless steel;
◆Sealing material: Tetrafluoroethylene;
◆Flange standards: HG20592-97 PN1.0. If the customer requires GB,HGJ, JB, ANSI,JIS or change pressure grade, clear it in the contract.
◆Manufacturing, test and inspection should be in accordance with standards: SY7511, 《Manufacturing, test and inspection of breather valve used for petroleum container 》, GB5908-1986 《Fire arrestment performance and test methods of arrestor used for petroleum container》.

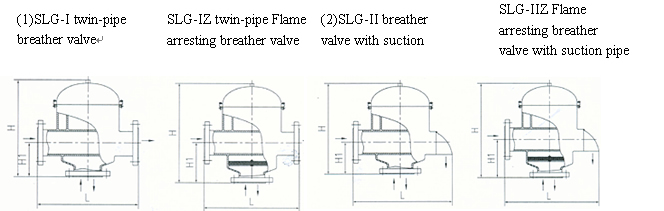

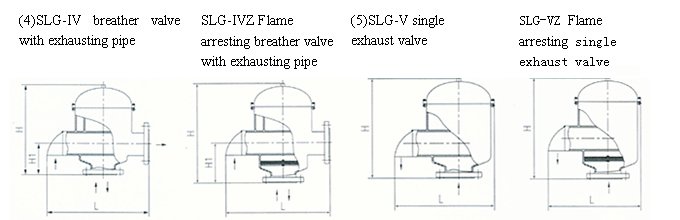

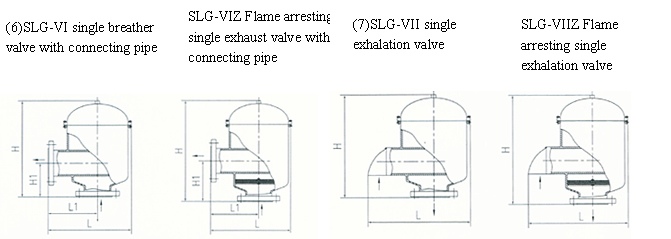

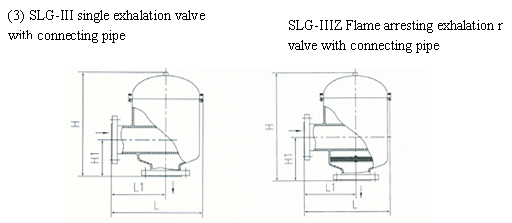

Product model and specifications
|
